## AQA GCSE Series Circuit Calculations

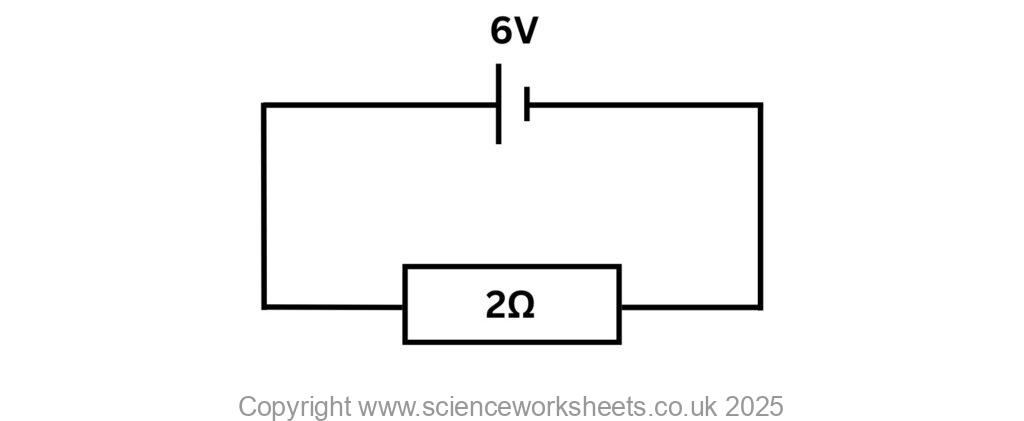

**Example 1**

In the** circuit** above **calculate** the **current,I ** flowing in the **circuit.**

V = IR,

So, I = V/R

I = 6/2 = 3A

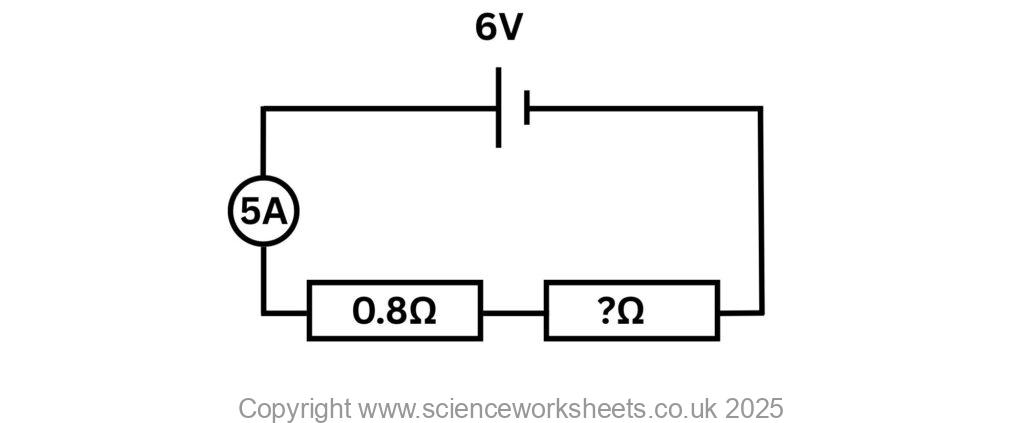

**Example 2**

In the circuit above calculate the resistance of the resistor on the right

First we need to find the total resistance of the whole circuit, using the potential difference across cell and reading on ammeter.

V = IR

R = V/I, R = 6/2 = 3 ohms

In a series circuit, total resistance is the sum of the individual resistors. So, if the total resistance is 3 ohms and the resistor on the left is 0.8 ohms, then the resistor on the right is 3-0.8 = 2.2 ohms.

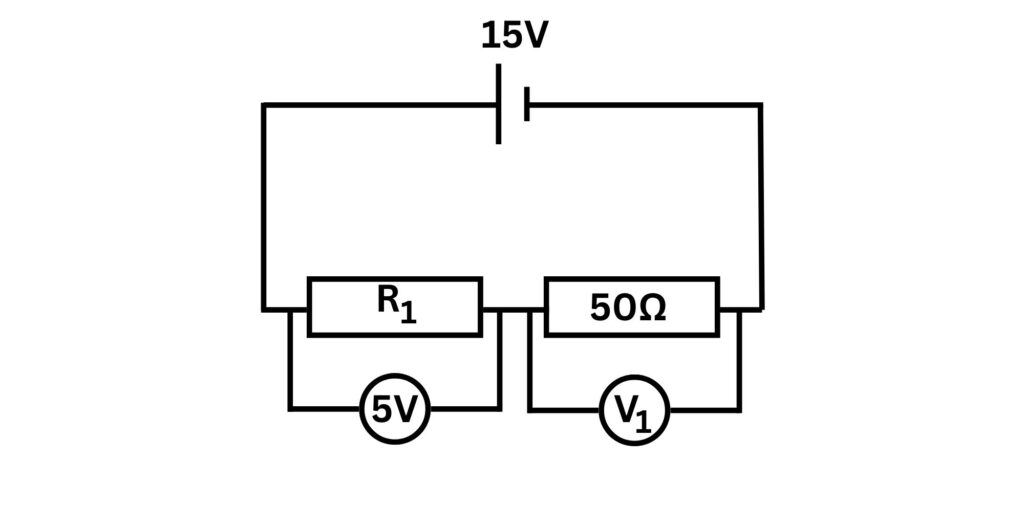

**Example 3**In the circuit above calculate V

_{1}and R

_{1}In a series circuit the potential difference is shared between the components. So 15V = 5V + V

_{1}. Therefore, V

_{1}= 10V.

We can now work out the current flowing through the 50 ohm resistor, using V = IR

I = V/R, I = 10/50 = 0.2A

In a series circuit, current is the same at all points. This means that a 0.2A current will also flow through R

_{1}.

V = IR, so R

_{1}= V/I

R

_{1}= 5/0.2 = 25 ohms

**Practice Questio****ns**

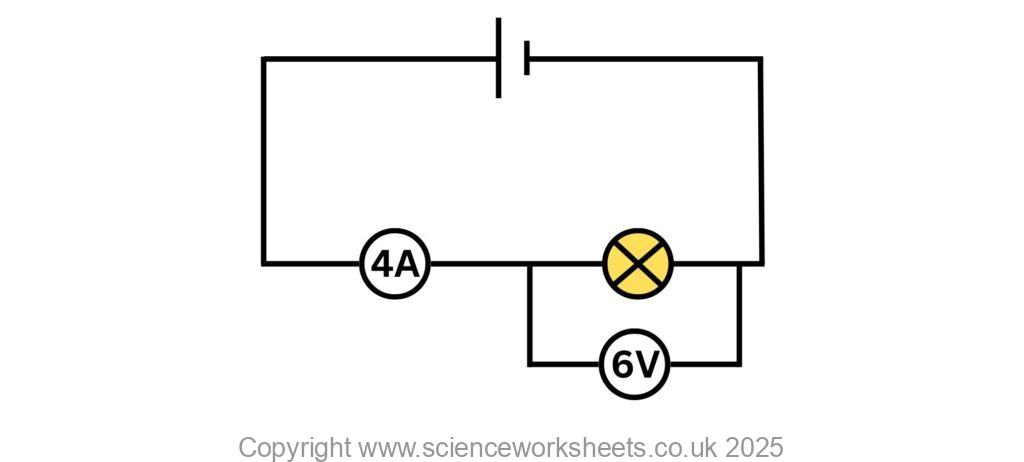

1.Calculate the resistance of the bulb in the circuit below

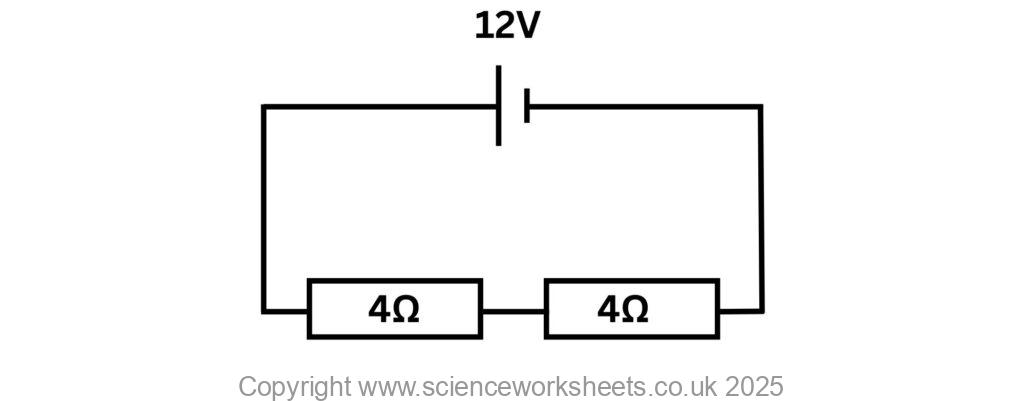

2. Calculate the current flowing through the circuit below with the two resistors.

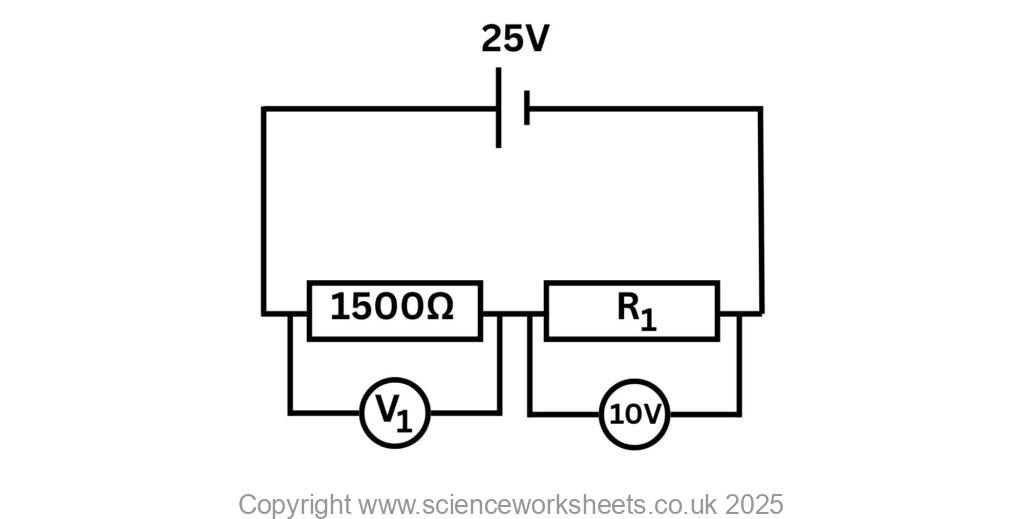

3. In the circuit below, calculate V_{1} and R_{1}
