Forces

A force is a push or pull that acts on an object due to the interaction with another object.

Forces are measured in Newtons. Any force is a vector quantity.

A force can change the shape, speed or direction of an object.

Compression forces have changed the shape of the cup
Net providing an elastic force to change the direction of a tennis ball

Compression forces have deformed the shape of the cup.

The net provides an elastic force to change the direction of the tennis ball.

The engine thrust will provide a force to cause the motorbike to accelerate and so its speed will increase

Types of Forces

There are two main types of forces:

1.Contact forces where the objects are physically touching

2.Non contact forces where the objects are not physically touching

Contact ForcesNon Contact Forces
FrictionElectrostatic
Air resistanceMagnetic
UpthrustGravitational force
TensionWeight
Reaction Force
Compression

Contact Forces

Friction

Friciton between a match and a matchbox, causing ignition of the match

Friction occurs between two solid surfaces that are in contact and opposes motion. In this case there is friction between the match head and the match box.

Air Resistance

Air resistance can slow down objects and it occurs as the object moves through the air. It is caused by the air particles needing to be moved out of the way. In the diagram below, the parachute causes air resistance making it harder for the man to run.

Upthrust

Upthrust with wood floating on the surface of waterUpthrust can allow objects to float in a fluid. The fluid exerts an upward force on the object.In this case the upward force of the water on the wood allows the wood to float.

Tension

Tension forces in the cable of the crane

Tension or stretching forces can occur in cables. For example there are tension forces in the crane cables, when the crane is lifting the crate.

Reaction force

Weight and reaction force diagram with force arrows using an example of a box on the floor

The Weight of the box exerts a downward force on the floor. In response the floor exerts a reaction force upwards on the box. Both forces are equal in size, opposite in direction.

The weight force should go from the centre of the box and point downwards. The reaction force should go from where the box and floor surface meet and point upwards. This is because the reaction force pushes the objects apart, in this case the box from surface.

Both arrows should overlay each other vertically. However, for simplification and to allow you to clearly see the force arrows, we have moved the reaction force just slightly to the left.

In some cases the arrows are in different positions on other websites for this example, sometimes for simplification reasons.

Also, remember weight is a non contact force. Reaction force is the contact force. Weight was only included here because we needed an example to show you reaction force.

Compression

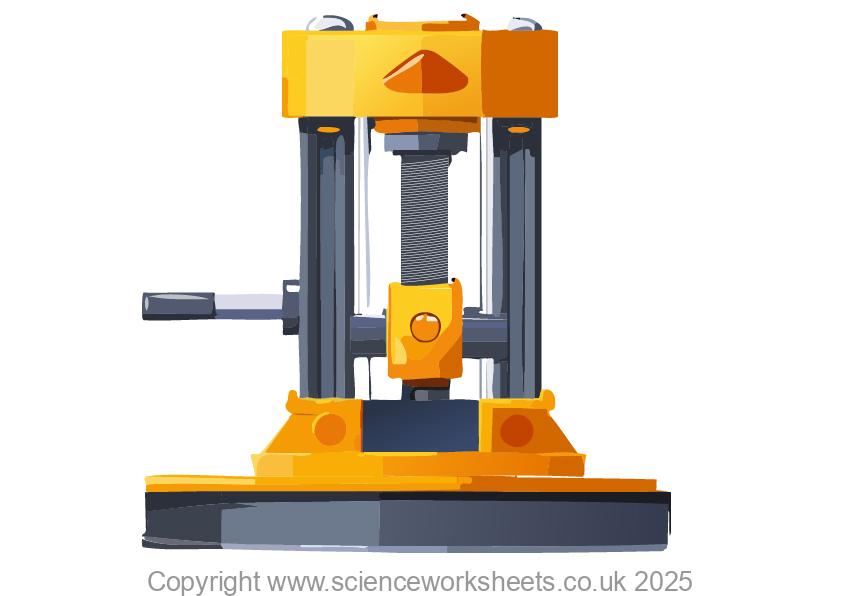

Compression force example This press using compression forces to squash any object placed within the space.

Non Contact Forces

Gravitational force

Gravitational force is the force of attraction between two masses.

Force diagram with arrows to show gravitational attraction between the Earth and Sun.

There is a gravitational force of attraction between the Sun and the Earth.

Both force arrows should start from centre as this is where the mass is concentrated.

Arrow 1 is the gravitational force that the Earth exerts on the Sun.

Arrow 2 is the gravitational force that the Sun exerts on the Earth

Both force arrows should be equal in size, but opposite in direction.

Electrostatic Forces

opposite charged spheres, experience a non contact force of attraction

Charged objects can exert electrostatic forces. In this case the opposite charged spheres have a force of attraction.

The arrows should start from middle of sphere, because that is where the mass is concentrated. However, for a simplification so the charges can be seen, the arrows were started from the edge of spheres.



Magnetic Forces

MAgnetic force with arrows and north poles of magnet



The diagram shows force arrows for magnetic forces when two north poles are placed next to each other. The force arrows start from the middle of the north pole and move in opposite directions, but are of equal size.



Practice Questions

1. Define the term force

2. How can forces affect an object?

3. Define the term contact force

4. Define the term non contact force



5. Give 3 examples of contact forces

6. Give 3 examples of non contact forces, excluding weight
