Latent Heat

Latent heat is the energy needed to change the state of a substance.

Latent heat of fusion is the energy needed to melt a substance

Latent heat of vaporisation is the energy needed for boiling  a substance



In the experiment below the substance is heated continuously, so the ice melts to form liquid water, which then boils to form steam. Temperature is recorded over time.

Latent heat experiment

In the graph below the lower horizontal section represents melting(latent heat of fusion) and the higher horizontal section represents boiling(latent heat of vaporisation).

Graph for latent heat

During both melting and boiling heat energy is still being supplied, but the temperature does not increase. This is because the energy being supplied increases the internal energy of the water.

Why does the internal energy increase when the substance is heated?

Between the particles there are tiny intermolecular forces that hold the particles together. These are stronger in solids, than in liquids.

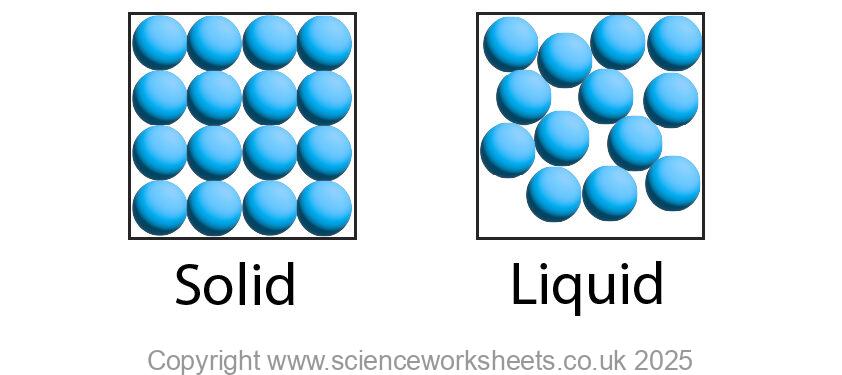

Particle diagram of a solid and liquid

When the solid is heated, the internal energy of solid particles increases, so they vibrate faster. This causes the weak intermolecular forces to break as the solid melts to form a liquid

When the liquid is heated the internal energy of liquid particles increases, so they move faster, breaking the weak intermolecular forces between particles as the liquid evaporates to form a gas.

Practice Questions

1.State the definition of latent heat

2.Use the graph below to anwer the following question.

Graph for latent heat

Suggest why the horizontal line for latent heat of vaporisation is longer than the horizontal line for latent heat of fusion

3. Explain  how  both the intermolecular forces and internal energy of water particles change as steam condenses to form liquid water
