AQA GCSE Elastic Potential energy

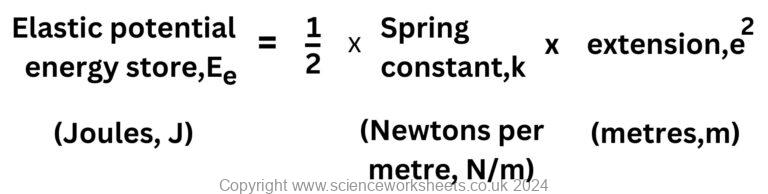

Elastic potential energy is the energy stored in an object when it is stretched or squashed.

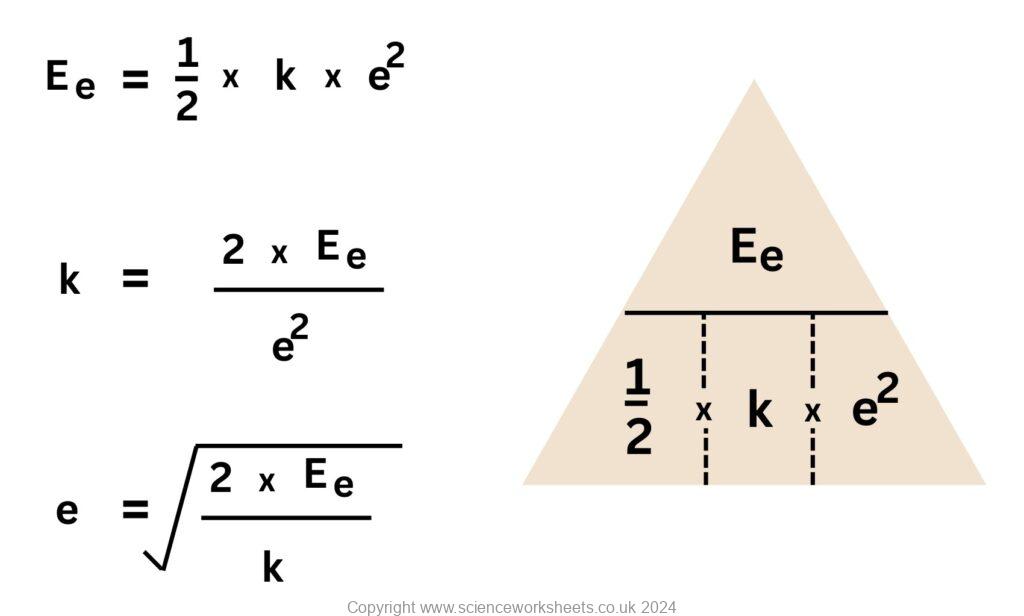

Depends on:
Spring constant (N/m)
Extension
The spring constant is a measure of the amount of force needed to change the length of the object.
Extension is the change in length.
If a spring is 0.1m under normal conditions and when stretched it is 0.4m, then the extension is 0.4m-0.1m = 0.3m.

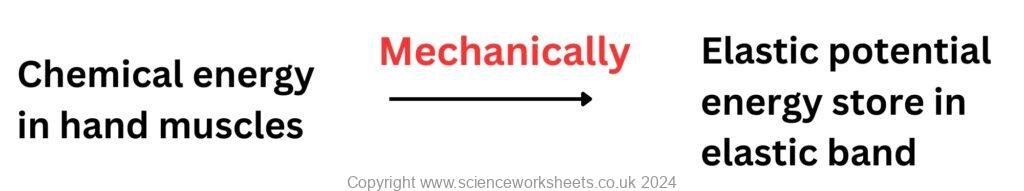

The woman on the left is doing work (transferring energy mechanically) from chemical energy store in her muscles to the elastic energy store of the resistance band.
This means that if 100J of work is done, the elastic energy store increases by 100J
Practice questions
1.Describe the relationship between the spring constant and the elastic potential energy.
2. A steel spring has a spring constant of 15N/m and when compressed its length decreases by 0.4m Calculate the elastic potential energy stored in the spring when it is compressed.
3. A resistance band has a spring constant of 30N/m. During an exercise its length is increased from 0.7m to 1.1m. Calculate the elastic potential energy stored in the resistance band.
4. A catapult has 100kJ of elastic potential energy stored and its spring constant is 4000N/m. Calculate the extension that the catapult is experiencing.
Need more questions, see our worksheets.
